Commercial Door MAXUM Operator

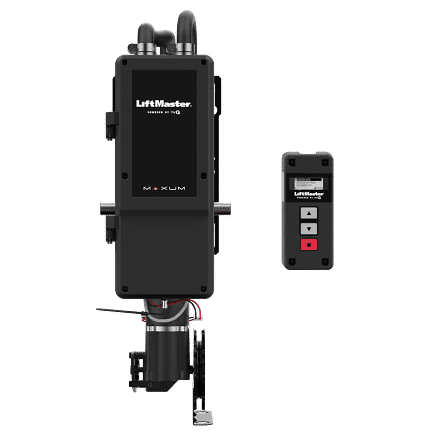

MAXUM DC Hoist Commercial Door Operator

JHDC

Motor and Gearbox purpose built to meet the high demands of commercial applications.
3-button control with 4-line LCD display for setup and programming from the floor level.
Up to 33% faster than standard commercial door operators, allowing you to get shipments in and out quickly. Average speed is 12” per second.
Optional Battery Backup accessory helps keep your door running even when the power goes out—ensuring safe and continuous operation.
Diagnostics at floor level through myQ® Facility on your mobile device allows you to see when there is a problem and anticipate maintenance cycles.
Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations.
Security+ 2.0® virtually eliminates radio wave interference and offers extended range.

MAXUM Commercial Door Operators Have Arrived

Fast

At an average speed of 12” per second, the operator quickly opens doors to help your business stay efficient and profitable. Plus, the floor LCD display allows you to easily track your maintenance schedule—reducing downtime.

Smart

Soft-start & Soft-stop gives the operator a longer lifespan while Battery Backup ensures that it will keep running—even in a power outage. With embedded Wi-Fi connectivity out the of box, you can use myQ Facility software to access data and analytics to improve your business.

Simple

Floor-level wall control makes the operator easier to control and check for preventative maintenance. The modular design enables both right and left-side mounting with a single unit—making the operator flexible to the needs of your application.

myQ Connectivity

Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.

Diagnostics

With myQ Diagnostics you can know your maintenance schedule and be alerted when there is a problem to reduce time on tools and increase safety.

SPECIFICATIONS

myQ Compatibility

Works with myQ, myQ Facility, or myQ Enterprise

Power

120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer accessory

Wi-Fi

Yes

Battery Backup

Capable w/ accessory kit 7 DC7AH only

Monitored Safety Inputs

3 Inputs

Duty Cycle Per Hour p/h & Per Day p/d

Standard – 20 cycles p/h /90 p/d | Extended – 30 cycles p/h /150 p/d

Speed/Per Second

Faster speed,12” on average for sectional and 8–9 inches for rolling steel doors

Radio Receiver

Security + 2.0

Motor Type

24VDC Motor Drive

Soft Start/Stop

Yes

Dual handing for installs

Right or left no longer required for order

Warranty

2 Years

What's Included

CPS-U

Commercial Photo Eyes

INSTALLATION & SUPPORT

Manual

Sell Sheets

General Documents

Architect Documents

COMPATIBLE ACCESSORIES

RGL-CTL

Hi-Intensity
Red/Green Traffic Light

LC36M

Monitored
Light Curtain

LMWEKITU

Monitored Wireless
Edge Kit

LOOPDETLM

Plug In Loop
Detector
