The Clopay Extreme™ Series combines high-strength durability with the ability to open at 24” per second. Powered by the robust LiftMaster opener, the Extreme™ Series- commercial doors are a great fit for emergency facilities, distribution center warehouses, car dealerships and much more. Manufactured with heavy duty hardware, these low maintenance sectional doors boast five times the spring life of an average commercial sectional door for optimal performance.
| Max Width | 16’2″ |
| Max Height | 14’0″ |
| Max Door Weight | 1,000 lbs |
| Upward Travel | 24″ per second |
| Downward Travel | 15″ per second |
| Stiles | Double end stiles (standard) |
| Glazing Available | Tempered, insulated tempered, acrylic and polygal |
| Springs* | 50,000 cycle standard (Max cycles available on a single shaft line) |
| Track Size | 2″ angle mount track standard 3″ track where applicable |
| Track Type | Standard lift, high lift and full vertical |
| Warranty | Standard paint – 5 years Color Blast® finish – 5 years Material and workmanship – 1 year Hardware – 1 year |
| *Cycles can vary depending on door configuration. |
The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24″ per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3′ of light curtain protection, a cable management system and standard cable tension monitor.
For operator specifications, click here.
| Model | Thickness | Spacing | R-Value | Max Width* | Max Height* |
| EX904 | 2-1/8″ | Equal width & spacing | – | 24’2″ | 20’0″ |
| EX904U*** | 2-1/8″ | Equal width & spacing | 3.8** | 20’2″ | 20’0″ |
*Maximum Width and Height values listed are Standard sizing.
**With clear insulated glass
***With Clopay’s proprietary polyurethane Intellicore insulation.
| Model | Section Thickness | Emboss | Exterior Gauge | Section Design | Insulation | R-Value Solid* | R-Value w/Glass** | Thermal Break | Max Width✭ | Max Height✭ |
| EX3729 | 2″ | Stucco | 27 | Minor Ribbed | Polyurethane*** | 18.4 | 8.0 | Yes | 20’2″ | 18’0″ |
| EX3728 | 2″ | Stucco | 27 | Flush | Polyurethane*** | 18.4 | 8.0 | Yes | 20’2″ | 18’0″ |
| EX3709 | 1-3/8″ | Stucco | 27 | Minor Ribbed | Polyurethane*** | 12.9 | 5.9 | Yes | 18’2″ | 16’0″ |
| EX3708 | 1-3/8″ | Stucco | 27 | Flush | Polyurethane*** | 12.9 | 5.9 | Yes | 18’2″ | 16’0″ |
| EX3209 | 2″ | Stucco | 24 | Minor Ribbed | Polystyrene | 9.1 | 4.4 | Yes | 20’2″ | 18’0″ |
| EX3208 | 2″ | Stucco | 24 | Flush | Polystyrene | 9.1 | 4.4 | Yes | 20’2″ | 18’0″ |
| EX3159 | 1-3/8″ | Stucco | 27 | Minor Ribbed | Polystyrene | 6.5 | 3.4 | Yes | 18’2″ | 16’0″ |
| EX3158 | 1-3/8″ | Stucco | 27 | Flush | Polystyrene | 6.5 | 3.4 | Yes | 18’2″ | 16’0″ |
*R-values calculated per DASMA TDS-163 on a solid door
**R-values calculated per DASMA TDS-163 using weighted average with 3/4″ insulated glass.
***Clopay’s proprietary polyurethane Intellicore insulation.
✭Maximum Width and Height values listed are Standard sizing.
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | Thermal Break | Max Width✭ | Max Height✭ |
| EX3220 | 2″ | Stucco | Flush | 20 Gauge | 9.1 | Thermally broken | 26’2″ | 20’0″ |
| EX3213 | 2″ | Woodgrain | Raised panel | 24 Gauge | 9.1 | Thermally broken | 24’2″ | 18’0″ |
| EX3211 | 2″ | Woodgrain | Flush | 24 Gauge | 9.1 | Thermally broken | 24’2″ | 18’0″ |
| EX3200 | 2″ | Stucco | Minor ribbed | 24 Gauge | 9.1 | Thermally broken | 26’2″ | 20’0″ |
| ex3150 | 1-3/8″ | Stucco | Minor ribbed | 27 Gauge | 6.5 | Thermally broken | 16’0″ | 16’0″ |
*Calculated door section R-value is in accordance with DASMA TDS-163
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | Std Max Width** | Std Max Height |
| 3723 | 2″ | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 24’2″ | 18’0″ |
| 3721 | 2″ | Woodgrain | 27 Gauge | Flush | 18.4 | 24’2″ | 18’0″ |
| 3720 | 2″ | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 40’2″ | 20’0″ |
| 3717 | 1 3/4″ | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 24’2″ | 20’0″ |
| 3718 | 1 3/4″ | Stucco | 27 Gauge | Flush | 16.2 | 24’2″ | 20’0″ |
| 3715 | 1 3/8″ | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 18’2″ | 16’0″ |
Clopay’s proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32’2″ wide consult factory for specific configuration requirements.
| Motor Design | 1.25 HP configuration serving single phase 115V/230V and 3-phase 230V configurations 3-phase 460/575V available with accessory transformer |
| Wall Controller | Separation of low and high voltage wiring – includes functionality of 3-button station, PLUS setting door profile, programming limits, diagnostics |
| Programming | Complete the following programming at floor level: set limits; choose door profiles for speed; set operating modes; select photo entrapment devices |
| Display | Provides textual status indications including – Absolute cycle count – Service cycle count – Diagnostics messages – Door/operator status |
| Cycle Counter | Re-settable cycle counter via the wall controller and/or through MyQ facility |
| Limit Settings | Simple electronic push-button setup via the wall controller |
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass
Obscure Glass
White Laminate Glass*
Black Laminate Glass*
Frosted Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
Extreme™ Series must have tempered glass
*Mirrored and laminate not available in 1/2″
Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 5/8″. Low-E available on insulated glass.
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Chocolate (Painted)
Bronze Anodized*
Black (Anodized)*
Dark Bronze Anodized*
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
*Model EX904U is not available with powder coat finish.
19-1/2” x 16”
42” x 16”
Modern Slim Windows*
Standard White
Almond
Desert Tan
Sandtone
Bronze
Mocha Brown
Gray
Charcoal
Chocolate
Black*
Trinar® White*
Lustra Black*±
Lustra Charcoal*±
Lustra Silver*±
*Available on select models.
±Finish will have smooth texture.
Custom powder coat and Color Blast® finishes available.
WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP.
Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.
Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
Insulated models made of 2-1/8″ durable commercial grade aluminum with polyurethane insulation
Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.
Smooth flat frame edge design for a more contemporary look.
The Clopay® Extreme™ Series High Performance Sectional Door System boosts productivity and delivers on style.

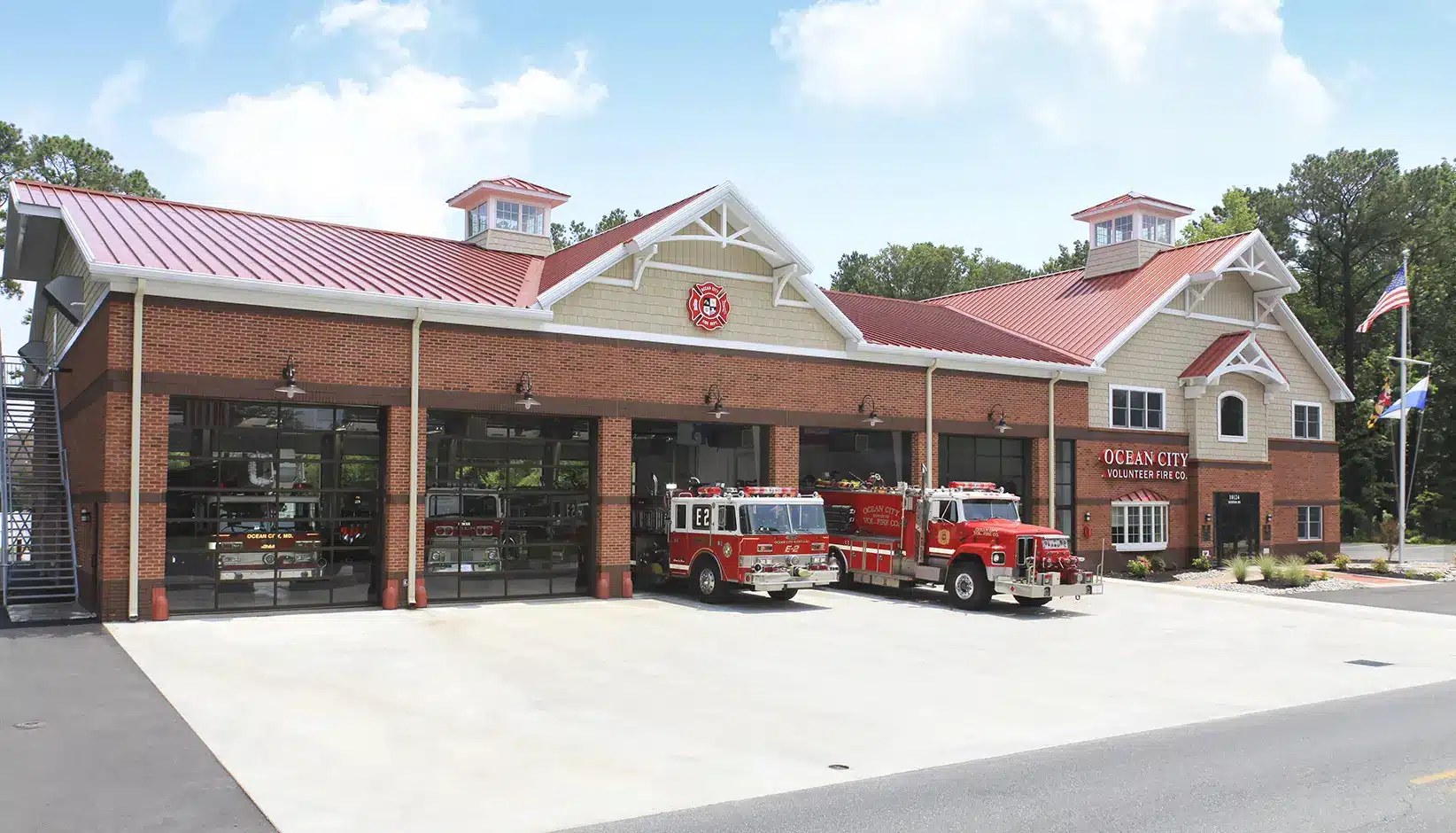

Designed with fire stations in mind, Extreme™ Series Sectional Doors are performance-forward, opening 3X faster than standard doors.
Helps improve hinge longevity
Thimble helps reduce wear and extend cable life
Long stem tandem rollers provide longer roller life and quiet door operation
Maintains tension on lift cable to prevent it from coming off of the drum
Helps prevent cable slack. Provided with standard lift track.
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
50,000 cycle spring standard Option available for maximum cycles on a single shaft line Springs are shot peened to improve resistance to fatigue
